Highlight
Industrial Aluminum Pressure Die Casting
,Industrial high pressure die cast
,Customizable Aluminum Pressure Die Casting
-
ItemDie Casting Service
-
Production ProcessInvestment Casting
-
MaterialAluminum
-
FinishAccording To Your Needs
-
DesignCustomizable
-
MOQ10PCS
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance± 0.1mm
-
ShippingExpress, Air, Sea
-
More DetailsPlease Contact Us
-
Place of OriginChina
-
Brand NamePolestar
-
CertificationISO9001, TS16949
-
Model NumberAs Drawing
-
Minimum Order Quantity10pcs
-
PriceAccording to the detailed drawing
-
Packaging DetailsCarton + Pallet, Customized package is available
-
Delivery Time3-20days
-
Payment TermsL/C,D/A,D/P,T/T
-
Supply Ability10000pcs per day
Industrial Aluminum Pressure Die Casting Customizable Anodizing

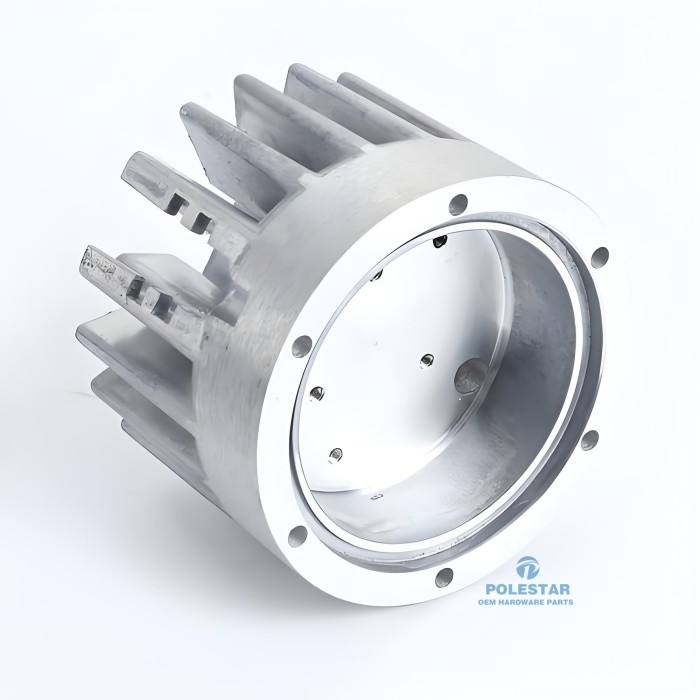

Industrial Radiator Surface LED Area Lighting 6061 Aluminum Die Cast Shell
Product Details
| Product Name | Aluminum Die Cast Metal Parts | Process | Die casting |
| Material | Aluminum Alloy | Basic Casting Process | Pattern Making, Molding, Melting and Pouring the Metal, Finishing |
| Popular Die Cast Aluminium Alloys | A380, 383, B390, A413, A360 and CC401 | Keyword | Aluminum Die Casting Metal Parts |
| Surface Finish | Zinc/Chrome Plating, Anodizing, Powder Coating, Electrophoretic painting etc. | Application | LED Area Lighting for Industrial Environments |
Designed for industrial radiator surface LED area lighting, this product is made of high quality aluminium alloy material and formed by die-casting process to provide efficient heat dissipation, rugged and aesthetically pleasing lighting solution.
Product Features:
Highly efficient heat dissipation:
The use of high thermal conductivity aluminium alloy material ensures the rapid conduction of heat generated by LEDs.
Durable and Rugged:
Aluminium alloy housing has high strength and hardness, able to withstand vibration and shock in industrial environments.
Aesthetically pleasing:
The die-casting moulding process can form a smooth and delicate surface with a beautiful and generous appearance.
Different surface treatments can be provided according to customer requirements, such as anodic oxidation, sandblasting, powder coating, etc., to meet different aesthetic needs.
Applications:
Lighting of industrial plants, warehouses, car parks and other areas.
Lighting of large venues such as stadiums, exhibition halls, etc.
Other lighting places that require efficient heat dissipation, durability and aesthetics.
How to choose the die casting aluminium alloys?
Some of the most commonly used die cast aluminium alloys are A380, 383, B390, A413, A360 and CC401. the main consideration when choosing the right alloy is your intended application.
For example, A360 has excellent corrosion resistance, pressure-tightness and very good flow when melted. b390 has excellent wear resistance and high hardness with the lowest ductility of any cast alloy, which is why it is used in applications such as automotive engine blocks. Alloy A380 is the perfect all-rounder, combining casting and product properties and is the most commonly used alloy for casting a wide range of products.
CNC Machining Tolerance:
| Precision Machining | Metals, PEEK, And ULTEM with Drawing |
Other Plastics with Drawing |
No Drawing |
| Linear Dimension | +/- 0.0025 mm +/- 0.0001 inch |
+/- 0.05 mm
+/- 0.002 inch |
ISO 2768 Medium |
| Hole Diameters (Not Reamed) |
+/- 0.0025 mm
+/- 0.0001 inch |
+/- 0.05 mm +/- 0.002 inch |
ISO 2768 Medium |
| Shaft Diameters | +/- 0.0025 mm
+/- 0.0001 inch |
+/- 0.05 mm
+/- 0.002 inch |
ISO 2768 Medium |
Why Choose Polestar for Precision CNC Machining Parts?
Durability: Components are designed to withstand harsh conditions and heavy usage.
Customization: Polestar can produce components tailored to specific industry requirements.
Quality Assurance: Rigorous testing ensures that each component meets high standards of quality.
Sustainability: Polestar is committed to environmentally friendly manufacturing practices.
Our products are sold all over the world, you can rest assured.
